Description
Star Trac PRO 7600 Treadmill Overlay/Keypad
Item includes both the graphic overlay and the keypad as an assembly.
Fit’s the following models:
Please follow installation instructions below; failure to do so can result in void of warranty.

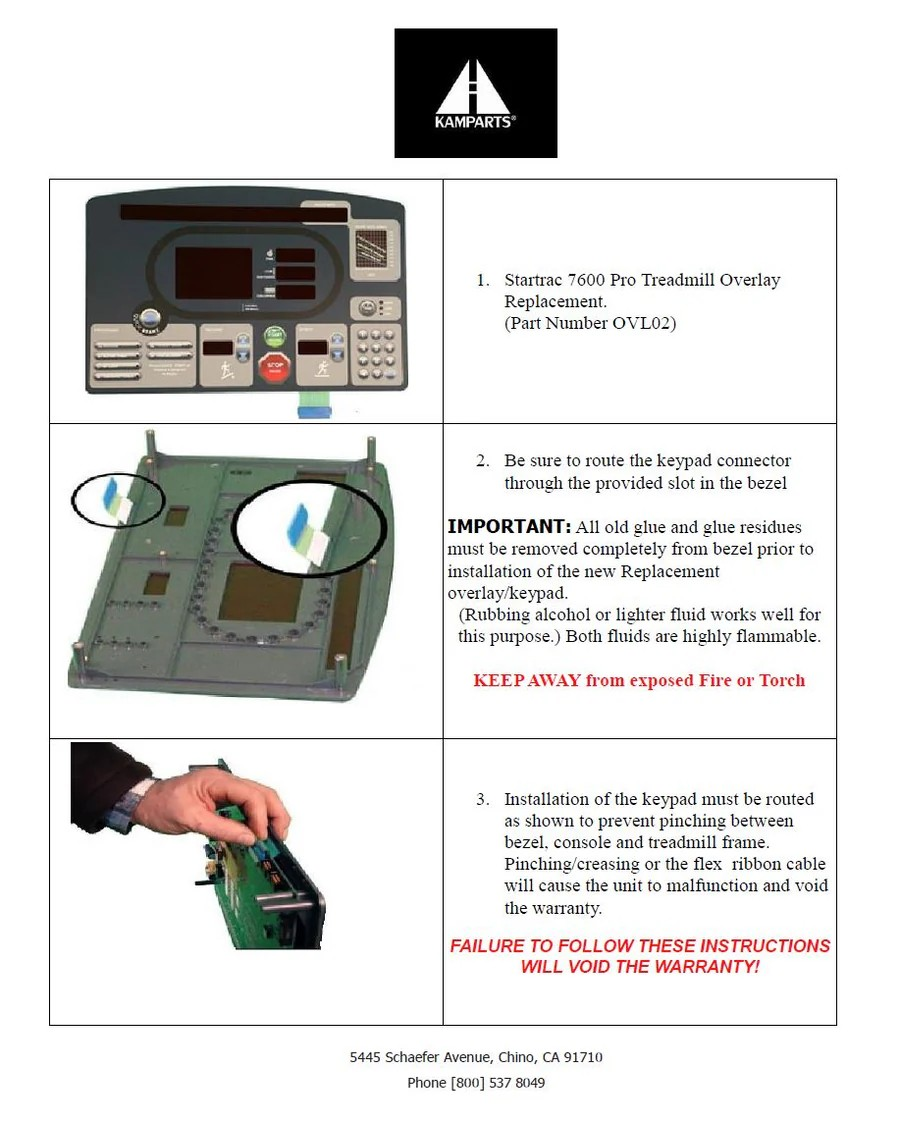

Startrac 7600 Pro Treadmill Overlay Replacement
(Part Number FP-OVL02)
1.
Be sure to route the keypad connector through the provided slot in the bezel
IMPORTANT:
All old glue and glue residues must be removed completely from bezel prior to
installation of the new Replacement overlay/keypad.
(Rubbing alcohol or lighter fluid works well for
this purpose.) Both fluids are highly flammable.
KEEP AWAY from exposed Fire or Torch
2.
Installation of the keypad must be routed as shown to prevent pinching between
bezel, console and treadmill frame.
Pinching/creasing or the flex ribbon cable will cause the unit to malfunction and void
the warranty.
FAILURE TO FOLLOW THESE INSTRUCTIONS
WILL VOID THE WARRANTY!
| MODEL | SUB MODEL | SERIAL NUMBER | OEM PART NUMBER |
| 7600 PRO | 9-7631 MUSAPO | AP | 715-3590 |
| 9-7631 SUSAPO | AP | 715-3590 | |
| 9-7631 SUSAP3 | AP | 715-3590 | |
| 9-7632 MOCEPO | AP | 715-3590 | |
| 9-7632 SOULPO | AP | 715-3590 | |
| 9-7632 SUKIPO | AP | 715-3590 | |
| 9-7632 SUSAPO | AP | 715-3590 | |
| 9-7632 SUSAP3 | AP | 715-3590 | |
| 9-7632 SUSAPO | AP | 715-3590 | |
| 9-7633 SUSAP0 | AP | 715-3590 |
Be sure to route the keypad connector through the provided slot in the bezel
IMPORTANT:
All old glue and glue residues must be removed completely from bezel prior to
installation of the new Replacement overlay/keypad.
(Rubbing alcohol or lighter fluid works well for
this purpose.) Both fluids are highly flammable.
KEEP AWAY from exposed Fire or Torch
2.
Installation of the keypad must be routed as shown to prevent pinching between
bezel, console and treadmill frame.
Pinching/creasing or the flex ribbon cable will cause the unit to malfunction and void
the warranty.
FAILURE TO FOLLOW THESE INSTRUCTIONS
WILL VOID THE WARRANTY!
